Brand Name : | Kweight |
Model Number : | KW-LCP--48-200 |
Supply Ability : | 50000 Piece/Pieces per Quarter |
Price : | |
Certification : | CE/RoHS/UN38.3/MSDS |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Delivery Time : | 15 days |

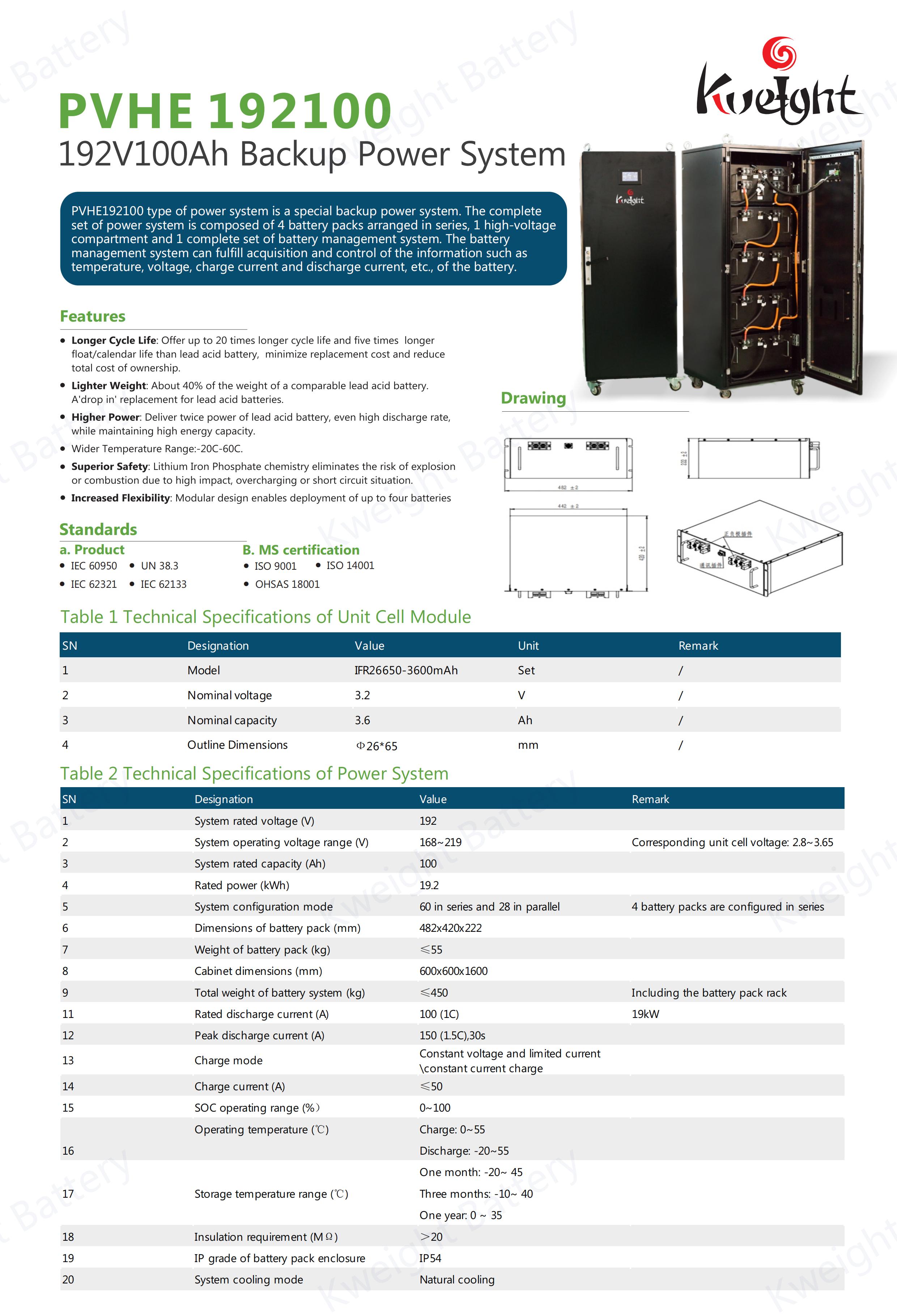

PVHE192100

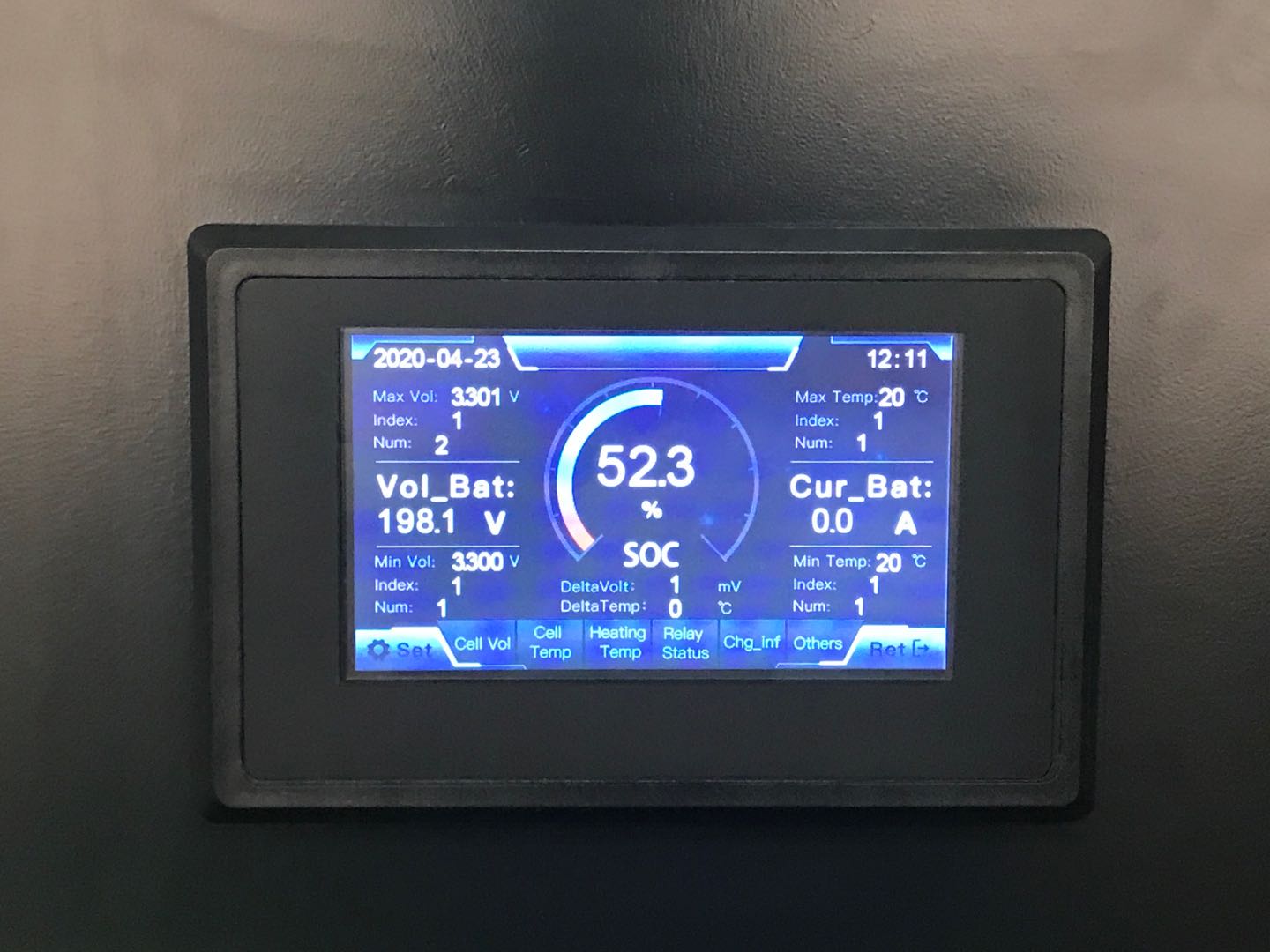

type of powers/stem is a special backup power system The complete set of power system is composed of 4 battery packs arranged in series,1 high-voltage compartment and 1 complete set of battery management system. The battery management system can fulfill acquisition and control of the information such as temperature, voltage, charge current and discharge current, etc, of the battery.
Item | PVHE-192-100 |
Rated Capacity | 100Ah |
Nominal Voltage | 192V |
Configuration | 60S2P |
Weight | 450Kg |
Dimension | 600*600*1600mm |
Standard Charge Current | 50A(100A MAX) |
IP Grade | IP54 |
Standard Discharge Current | 50A |
Max Discharge Current | 100A |
Charging Temperature | 0-45 ℃ |
Discharging Temperature | -20^60℃ |
Standard Environmental Condition | Temperature: 23±5℃ Humidity: <75%RH AtmosphericPressure: 80-106Kpa |
![]() |
