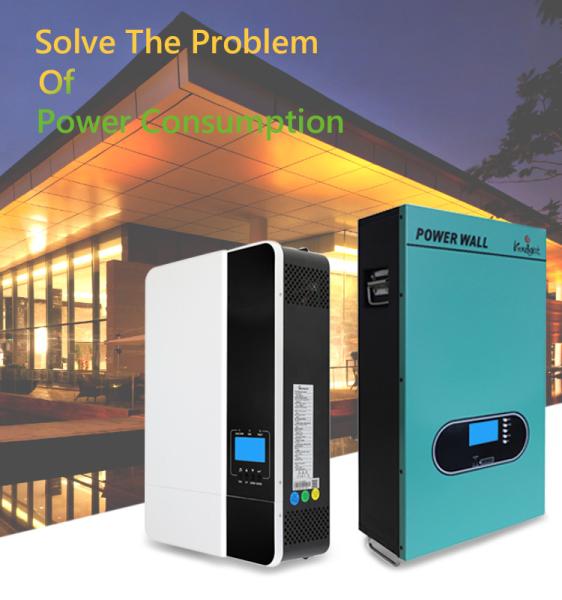

    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter

    Ask Lasest Price
    Brand Name : Kweight
    Model Number : HS-001
    Supply Ability : 10000 Acre/Acres per Month
    Price :
    Certification : CE/RoHS/UN38.3/MSDS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter

    10Years Warranty Complete Set 10000W Off Grid 10Kw 12Kw 15Kw 20Kw Energy Storage Battery And Inverter All In One
    Product Description

    5KW/10KWh Battery & 5KW Inverter

    ->Standard 48V system
    ->The most popular battery capacity: 10KWh
    ->CAN2.0/RS485/RS232
    ->Total energy extends to 60KWh by 6 parallel battery packs
    ->Installation: Floor Wall mounted
    ->Matched with various famous brand inverters
    Battery Spec.
    Nominal Voltage
    48V/51.2V
    Capacity
    100Ah/200Ah
    Energy
    5120Wh/10240Wh
    Internal Resistance
    ≤80mΩ
    Cycle Life
    ≥6000 cycles @ 80% DOD, 25℃, 0.5C
    ≥5000 cycles @ 80% DOD, 40℃, 0.5C
    Design Life
    ≥10 years
    Charge Cut-off Voltage
    57.6V±0.5V
    Standard charge
    50A
    Max. Continuous Work Current
    100A
    Discharge Cut-off Voltage
    43.2V±0.5V
    Charge Temperature
    0℃~45℃
    Discharge Temperature
    -20℃~55℃
    Storage Temperature
    -20℃~45℃ @ 60%±25% relative humidity
    Dimensions
    10KWh Size:604 x470 x198(238)mm 5KWh Size : 600 x345 x160(200)mm
    Weight
    10KWh Approx:≈86kg 5KWh Approx:≈45kg
    Protocol (optional)
    RS232-PC RS485(B)-PC RS485(A)-Inverter CANBUS-Inverter
    Inverter Spec.
    Battery Voltage
    48VDC
    Battery Type
    Lithium/Lead-acid
    Rated Power
    5000VA/ 5000W
    Parallel Capability
    Yes, 6 units maximum
    AC Voltage Regulation
    (Battery Mode)
    230VAC ± 5% @ 50/60Hz
    110VAC ± 5% @ 50/60Hz
    Surge Power
    10000VA
    Efficiency (Peak)
    93%
    Waveform
    Pure sine wave
    Transfer Time
    10ms typical, 20ms Max
    Maximum PV Array Power
    6000W
    MPPT Range @ Operating Voltage
    120VDC ~ 430VDC
    Number of Independent MPP Trackers/ Strings Per MPP Tracker
    1/1
    Maximum PV Array Open
    Circuit Voltage
    450VDC
    Charge Current
    80A
    AC Input Voltage
    230 VAC 110AVC
    Selectable Voltage Range
    170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
    Frequency Range
    50Hz/60Hz (Auto sensing)
    Dimension (W/H/D)
    330/485/135mm
    Net Weight
    12kgs
    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter
    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter
    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter
    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter
    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter
    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter
    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter
    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter
    6000 Times Lithium Battery Systems Off Grid 12Kw 20kw Battery Storage Inverter
    FAQ
    Q1:Are you a manufacturer or trading company?
    A1: We are a manufacturer, a leading company in the global battery field.
    Q2:How about your after-sale service?
    A2: We can offer you timely and best after-sale service. So far we have our branch offices in many overseas countries like USA, Canada, the UK, France, Brazil, Japan, Korea, Philippines, Malaysia, India, Australia, and other Asia and African countries. It makes our after-sale service very easy and effective to reachyou. Also our 24 hours online inquiry service is available.
    Q3:What's your delivery time?
    A3: It depends on the specific products and the quantity you need.
    Q4:What certifications does your company have?
    A4: Our company had passed the CE&RoHS, ISO19001&ISO14001 certifications.
    Q5: Why should I choose your company?
    A5: A. Our belief : assured long-lasting quality, reliable long-existing service.

    B. Our competence: quality and technology is our key competitive advantage, wins a good reputation and track record for us.
    C. Our dream: provide every customer with the suitable high quality battery for the further business cooperation.
    D. Our honor : our batteries served as the power supplier for 2010 Singapore Youth Olympic Games for their reliable quality and stable high performance.
